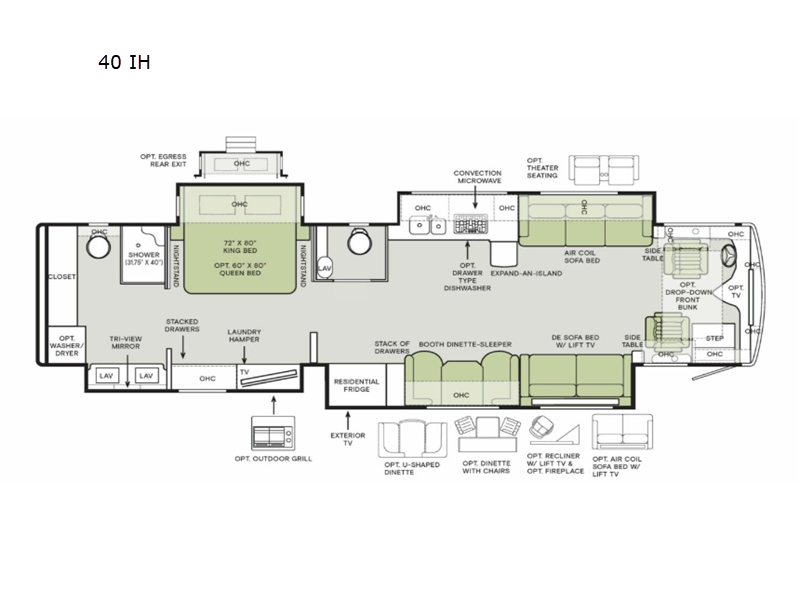

New 2024 Tiffin Motorhomes Phaeton 40 IH

Motor Home Class A - Diesel

Stock #BD101

Boerne, TX

1 of 41

+41

Sale Price: $383,373
List Price: $511,164
Save: $127,791

Sleeps 7
4 Slides
Bunk Over Cab

Bath and a Half

41ft Long

See All Specs

Specifications

Sleeps	7	Slides	4
Length	41 ft 4 in	Ext Width	8 ft 5 in
Ext Height	13 ft 3 in	Int Height	6 ft 11 in
Hitch Weight	10000 lbs	GVWR	39660 lbs
Fresh Water Capacity	100 gals	Grey Water Capacity	100 gals
Black Water Capacity	55 gals	Tire Size	295/80R22.5
Fuel Type	Diesel	Miles	989
Engine	Cummins L9	Chassis	Freightliner XCR Raised Rail Rear
Horsepower	450 hp	Fuel Capacity	100 gals
Wheelbase	266 in	Available Beds	King
Torque	1250 ft-lb	Refrigerator Type	Stainless Steel Residential with French Doors and Bottom Freezer
Refrigerator Size	25 cu ft	Convection Cooking	Yes
Cooktop Burners	2	Shower Size	31.75" x 40"
Number of Awnings	2	Axle Weight Front	15660 lbs
Axle Weight Rear	24000 lbs	LP Tank Capacity	35.7 gals
Water Heater Type	Truma AquaGo Comfort Instant	AC BTU	45000 btu
Basement Storage	232 cu. ft.	TV Info	LR TV, BR Mounted TV, Ext. TV
Awning Info	Girard Power Patio and Window	Washer/Dryer Available	Yes
Gross Combined Weight	49660 lbs	Shower Type	Shower w/Seat
Electrical Service	50 amp	VIN	4UZACHFE1PCUN7949

Description

Tiffin Motorhomes Phaeton Class A diesel motorhome 40 IH highlights:

Booth Dinette-Sleeper
Two Sofa Beds
Convection Microwave with Air Fryer
Bath and a Half
Exterior TV
King Bed Slide

You will feel right at home in this coach with a master suite and king bed slide, mounted TV, laundry hamper, and staked drawers. You all have quick access to the full rear bathroom. The bathroom not only has a dual sink vanity with a tri-view mirror for two to get ready at once, but also a shower with a seat and a large closet with an area next to it prepped to add an optional washer and dryer. The chef can prepare their best meals either indoors with the Expand-An-Island and cooktop with convection microwave or outside if you add the optional outdoor grill. You can even watch the big game outside with the exterior TV with a sound bar!

Each one of these Tiffin Motorhomes Phaeton Class A diesel motorhomes offer high-end elegance at every turn! A PowerGlide chassis or Freightliner chassis, depending on the model you choose, will give you a smooth ride for every mile, and each coach is now standard with a Cummins L9 450 HP engine to power your journeys. There is a 10.0 kW Onan Quiet Diesel generator, three 15k BTU A/C units, and a Firefly integrations Eclipse module to keep you connected wherever you go. Outside, you'll appreciate the custom rock guard to protect your unit, along with full-body paint with four layers of clear coat and high-performance protection film on the front cap and select areas. A Girard power awning with LED lights also comes standard plus a fiberglass reinforced plastic basement floor, an exterior TV, and more! New features include a redesigned ceiling treatments, new wood colors and decors, a Starlink Pro options, and a raised rail chassis on all models.

Features

Standard Features (2024)

Chassis and Drivetrain Features

Cummins L9 450 HP Diesel Engine with 1,250 lb-ft Torque
Two-wheel Drive
Allison® 3000 MH 6-speed Automatic Transmission with Lock-up Torque Converter
Front and Rear 295/80R 22.5 Tires
(2) 12-Volt Flooded Lead-Acid Chassis Batteries
Hydraulic Leveling Jacks with Control Panel
Freightliner® V-Series VFS I-beam Front Suspension (Only on 37 BH)
ZF Independent Front Suspension
Rear Radiator
Front Disc Brakes and Rear Drum Brakes
Full Air Brake System with Automatic Slack Adjusters
Three-stage Compression Brake
Manual Parking Brake
Driver and Passenger Side Fuel Fill
Tire Pressure Monitoring
Adaptive Cruise Control
Automatic Traction Control
Collision Mitigation with Forward Warning and Active Braking
Electronic Stability Control
PowerGlide Raised Rail Rear Engine Diesel Chassis (Standard; 35 CH) (Optional; 37 BH) (N/A 40 IH, 44 OH)
Freightliner XCR Raised Rail Rear Engine Diesel Chassis (Standard; 40 IH, 44 OH) (Optional; 37BH) (N/A 35 CH)

Alternator Options

210-Amp Alternator (Standard; 35 CH) (DEP; 37 BH) (N/A 40 IH, 44 OH)
240-Amp Alternator (Standard; 40 IH, 44 OH) (DEP; 37 BH) (N/A 35 Ch)

Wheel Options

Aluminum Wheels (DEP)
Black Aluminum Wheels (DEP)
Front Sway Bar (Standard; 35 CH) (DEP; 37BH) (N/A 40 IH, 44 OH)

Rear Suspension Options

Freightliner® V-Series V-Ride Rear Suspension (N/A 35 CH) (DEP 37 BH) (Standard 40 IH, 44 OH)
Reyco® Granning® Air Ride Rear Suspension (Standard 35 CH) (DEP 37BH) (N/A 40 IH, 44 OH)
Custom Tuned Sachs® Shock Absorbers (N/A 35 CH) (DEP 37 BH) (Standard 40 IH, 44 OH)
Custom Tuned Koni Shock Absorbers (Standard 35 CH) (DEP 37BH) (N/A 40 IH, 44 OH)

Construction

Seamless One-piece Gel-coat Fiberglass Molded Roof Cap
5 1/4" Formed Roof Insulation
Tubular Aluminum Roof Skeleton Frames
Extraordinaire Ducted Air Cooling System
One-piece Molded Gel-coat Fiberglass Front and Rear Caps
Steel Cockpit Overhead Support Frame
Crane Composites Noble Select All-Composite Exterior Sidewalls
Tubular Aluminum Wall Skeleton Frames
High-performance thermal insulation in sidewalls
Engineered Wood Sub-flooring
Laminated Elevated Sub-flooring with 2 3/4" Thick Thermal Insulation
Steel Basement Construction
Rust Protective Undercoating
Hydraulic slide out mechanisms
Extra storage chassis construction

Electrical

Spyder Controls Multiplex System
Firefly Integrations Eclipse Module
Centralized 10” Spyder System Main Monitor
Passenger Console Spyder System Color Touchscreen
Interior Entryway Spyder System Color
Exterior Spyder System Color Touchscreen
Additional Spyder Color Touchscreens Throughout Coach
10.0-Kilowatt Onan® Quiet Diesel Generator
Generator Slide Tray
2,000-Watt Pure Sine Wave Inverter Charger with Auto-Gen Start and Interior Remote Control
(3) 15,000-BTU Low Profile Air Conditioners with Heat Pumps and Condensation Drains
50-Amp Shore Power with Powered Retract Reel
Auxiliary Solar Port
Energy Management System
HD Over-the-air Antenna
Park Cable and Ground Satellite Hook-up
Prep for In-motion Satellite
Blu-ray™ Player
Satellite Receiver
12-Volt Breaker Panel
12-Volt Disconnect Switch
Rotary Disconnect Switches for House Batteries, Chassis Batteries, and Inverter
Ground Fault Circuit Interrupter (GFCI) Outlets at Galley, Lavatories, and Sewer Bay
110-Volt Exterior Receptacle
Surge Guard® Transfer Switch
USB Receptacles Throughout Coach
Heating and Cooktop Power Source Options
Liquid Propane (LP) Coach (N/A 44 OH)
Hydronic Heating & Electronic Appliance Equipped Coach (Optional)

House Battery Options

(6) 6-Volt, 230-Amp Hours Flooded Lead-Acid House Batteries
(6) 6-Volt, 210-Amp Hours Extended Cycle AGM House Batteries (Optional)
(3) 12-Volt, 270-Amp Hours Lithium House Batteries (Optional)
Battery Slide-out Tray (DEP)
(1) 30,000-BTU and (1) 20,000-BTU Ducted Furnaces (DEP; N/A 40 IH, 44 OH)
(2) 30,000-BTU Ducted Furnaces (DEP; 40 IH Only)
Aqua-Hot® 450D Heat Exchanger (DEP)
Prep for Solar Panels (Optional)
(3) 200-Watt Solar Panels with (1) 30-Amp Controller (Optional)
(6) 200-Watt Solar Panels with (2) 30-Amp Controllers (Optional; N/A 35 CH)

Electrical Add On Options

In-motion Satellite Dish
Prewiring for Winegard® Trav’ler™ Satellite
Internet & Phone
Prep for Wi-Fi Booster (DEP)
Wi-Fi Booster
Starlink® Pro

Plumbing

Aqua View Showermiser
Water Filter
Water Pump Switch Access from Spyder System and Sewer Bay Board
Low-point Water Drain Lines
Black Holding Tank Flush System
Gravity Water Fill
Heated Water and Holding Tank Compartment
SeeLevel Tank Monitor
Centralized Exterior Sewer Bay with Gravity Black and Grey Evacuation Ports
Exterior Rinse Hose with Shower Head
Sewer Bay Hand Sanitizer and Paper Towel Holders
Fresh Water Hose with Power Retract Reel

Water Heater Options

Truma AquaGo Comfort Instant Water Heater (DEP) (N/A 44 OH)
Aqua-Hot 450D Heat Exchanger (Std. 44 OH) (DEP; all other models)
Water Heater Bypass System (DEP) (N/A 44 OH)

Exterior

Full-body Paint with (4) Layers of Clear Coat
Single-Colored Slide Out Endwalls
High Performance Protective Film on Front Cap and Select Areas
Girard® Powered Door Awning with Integrated LED Lighting
Girard® Manual Window Awning Package
Girard® Slide-out Toppers
Side-swinging Exterior Storage Doors with Gas Shocks
Lockable Handles on Compartment Doors
Motion-sensor Lights in Cargo Bay
120-Volt and 12-Volt Outlets Inside Cargo Bays
Charcoal Carpet Cargo Walls
Fiberglass Reinforced Plastic Basement Floor
Frameless, Dual-Pane Windows
Exterior Patio Light
Daytime Running Lights
Docking Lights
Chrome Power Heated Side-View Mirrors with Integrated Cameras
Exterior TV with Soundbar
Fast Charge USB ports within Exterior TV Compartment
Lightweight Entry Door with Integrated Screen
Deadbolt Front Entrance Lock
Lighted Entry Door Grab Handle
Automatic Stainless Steel Double Entry Step
Keyless Entry System for Front Entrance and Component Doors
Mud Flaps
Custom Rock Guard

Exterior Paint Color Options

Maroon Coral
Euro Blue
Fire Opal
Frosted Granite
Nasa
Sunlit Sand
White Mahogany
Midnight

Patio Awning Options

(1) Girard® Side-mounted Powered Patio Awning with Integrated LED Lighting
(2) Girard® Roof-mounted Powered Patio Awnings with Integrated LED Lighting and Dual Pitch Feature (Optional)

Slide Tray Options

(1) Manual Storage Compartment Slide Out Tray (Optional)
(2) Manual Storage Compartment Slide Out Trays (Optional; 40 IH, 44 OH Only)

Exterior Add On Options

Outdoor Electric Grill (DEP, Optional; 40 IH, 44 OH Only)
Lippert On-The-Go Telescoping Ladder (Optional)

Interior

Handcrafted Overhead Cabinetry
Solid Surface Step Well
Powered Step Well Cover
Storage Compartment Within Entry Steps
Recessed Step Well Lighting
Living Area TV
Solid Surface Galley Countertop
Treated Carpet in Slide-out Floors
Handcrafted Slide-out Fascia
Soft Touch Vinyl Ceiling
Dimmable LED Lighting
Prep for Washer and Dryer
Carbon Monoxide Detector
LPG Leak Detector
Smoke Detector
Fire Extinguisher
Solar and Privacy Shades
Soft-closing Drawers
Powered Roof Vents
Central Vacuum System with VacPan® Automatic Dustpan
Interior Grab Handle at Entry Door
Egress Windows Throughout Coach

Interior Decor Packages

Carpi (Optional)
Tide Pool (Optional)
Stallion (Optional)

Upholstery Fabrics

Ultrafabrics® Tottori Tatami Mat (DEP)
Ultrafabrics® Tottori Rice Paper (DEP)

Cabinetry Color

Shadow Sandstone (Optional)
White Linen (Optional)
Platinum (Optional)
Black Truffle (Optional)

Floor Tiles

Sweden Alps Glazed Porcelain Tile (Optional)
Editorial Volakas Glazed Porcelain Tile (Optional)

Interior Add On Options

Standalone Living Area Fireplace (35 CH Only)
Stacked Washer and Dryer
Gold Heat® Dual Zones Heated Tile Floor

Drivers Compartment

Ultrafabrics® Tottori Power Driver and Passenger Seats
Dual Driver And Passenger Seat Armrests
Swivel Bases for Driver and Passenger Seats
Powered Passenger Seat Footrest
Integrated Seat Belts on Driver and Passenger Seats
Tilt and Telescoping Steering Wheel with Integrated Controls
Adjustable Accelerator and Brake Pedals
Wraparound Dash with Graphite Accents
Mounted Dash Fans
Cupholders on Driver and Passenger Side
Digital Dash Cluster
(1) Center Storage Drawer
Generator Start & Stop Rocker Switch
USB Dash Receptacles
12-Volt Dash Receptacle
Backlit Dash Rocker Switches
Passenger Console Wireless Phone Charger
Driver and Passenger Map Lights
One-piece Panoramic Windshield
Single-motor Intermittent Windshield Wipers
Automatic LED Headlights
Side-view Cameras
Color Back-up Camera
10" High Definition LED Multichannel Camera Monitor
Stereo with AM & FM Radio, CD Player, and Satellite Radio
Ceiling Mounted Speakers
Overhead Cabinetry with Wooden Panel Doors
Auxiliary Start Switch
Concealed Air Horn
Manual Opening Driver Side Window
Solid, Non-opening Passenger Side Window
Powered Solar and Privacy Windshield Shade
Manual Solar and Privacy Shades on Side Windows

Drivers Compartment Add-On Options

Blind Spot Monitoring System
In-dash Navigation System
Front Overhead TV
Electric Front Overhead Drop-Down Bunk

Dinette and Living Area

Driver Side Dinette

75" Booth Dinette-Sleeper (37 BH Only)
75" U-shaped Dinette (Optional; 37 BH Only)
75" Dinette with Chairs (Optional; 37 BH Only)

Driver Side Furniture

74" Air Coil Sofa Bed (N/A 44 OH)
74" Theater Seating (Optional; N/A 44 OH)
89" Air Coil Sofa Bed (44 OH Only)
89" Theater Seating (Optional; 44 OH Only)

Passenger Side Dinette

75" Dinette with Chairs and Lift TV (35 CH Only)
75" Dinette Bar with Lift TV (Optional; 35 CH Only)
72" Booth Dinette-Sleeper (40 IH Only)
72" Dinette with Chairs (Optional; 40 IH Only)
72" U-shaped Dinette (Optional; 40 IH Only)
75" Booth Dinette-Sleeper (44 OH Only)
75" U-shaped Dinette (Optional; 44 OH Only)
75" Dinette with Chairs (Optional; 44 OH Only)

Passenger Side Furniture

64" DE Sofa Bed with Lift TV (37 BH Only)
68" DE Sofa Bed with Lift TV (40 IH Only)
68" Air Coil Sofa Bed with Lift TV (Optional; 40 IH Only)
84" DE Sofa Bed with Lift TV (44 OH Only)
84" Air Coil Sofa Bed with Lift TV (44 OH Only)
Recliner and Lift TV (Optional; N/A 35 CH)
Recliner and Lift TV with Fireplace (Optional; N/A 35 CH)

Kitchen

1.7-Cubic Foot Smart Convection Microwave with Air Fry
Double Bowl Kitchen Sink with Single Lever Faucet and Pull-down Sprayer
Built-in Soap Dispenser
Galley Overhead Cabinets with Pull-out Drawers
Panoramic Galley Window
Task Lighting
Toe Kick Lighting
Full Tile Backsplash
Solid Surface Galley Countertop, Sink, and Cooktop Cover
22-Cubic Foot Stainless Steel Residential Refrigerator with French Doors and Bottom Freezer (35 CH Only)
25-Cubic Foot Stainless Steel Residential Refrigerator with French Doors and Bottom Freezer (N/A 35 CH)

Cooking Appliance Options

Three-Burner Liquid Propane Cooktop (DEP; N/A 44 OH)
Two-Burner Induction Cooktop (DEP) (Standard on 44 OH Only)
Drawer-style Dishwasher (Optional)
Manual Release Expand-An-Island (Standard; N/A 35 CH)

Bedroom

Under Bed Storage
Bedside Windows
Overhead Cabinets with Headboard
Bed Comforter with Throw Pillows
Handcrafted Privacy Door
LED Reading Lights
Nightstand with Solid Surface Tops
Mounted Flat-panel TV
Centralized Entertainment Center
Ceiling Fan
Laundry Hamper

Mattress Options

Memory Foam King Mattress (72" x 80") with Power Smart Lift (Standard; 35 CH Only)
Memory Foam Queen Mattress (60" x 80") with Power Smart Lift (Optional; 35 CH Only)
Memory Foam King Mattress (72" x 80") (N/A 35 CH) (Standard on all other models)
Memory Foam Queen Mattress (60" x 80") (Optional; N/A 35 CH)
Floor-to-ceiling Closet Space (Standard; 35 CH, 40 IH Only)
Wardrobe with Drawers Underneath (Standard; 37 BH Only)
Walk-in Closet (Standard; 44 OH Only)

Bedroom Add-On Options

Safe
Bedroom Egress Door

Bathroom

Solid Surface Lavatory Top
Handheld Shower Head with Slide Bar
Shower Skylight
Shower LED Light with Sliding Cover
Towel and Toilet Paper
Roof Vent Fan
Base Cabinet
Number of Bathrooms
(1) Bathroom (35 CH Only)
(1) Bathroom and (1) Half-bath (N/A 35 CH)
Master Bathroom Sink
(1) Porcelain Master Bathroom Sink (37 BH Only)
(2) Porcelain Master Bathroom Sinks (N/A 37 BH)
One-Piece Molded Fiberglass Shower (31.75" x 40") (N/A 37 BH)
One-Piece Molded Fiberglass Shower (28.5" x 40.5") (37 BH Only)
(1) Macerator Toilet (35 CH Only)
(1) Gravity Flush Toilet and (1) Macerator Toilet (N/A 35 CH)
Master Bathroom Medicine Cabinet
Medicine Cabinet with Tri-view Vanity Mirror (N/A 37 BH)
Mirrored Medicine Cabinet (37 BH Only)

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

always responsive
I came to Ancira RV because they had the RV that I wanted at the price I wanted to pay. I found my experience rewarding because of the professional and knowledgeable staff. Always responsive to my questions or concerns. Never passed me off to someone else, but instead followed through to complete actions

Paul
quick response
We came to Ancira RV because we found the popup camper we had been looking for. It all started online- had no problem getting a quick response online- informed Gary E thru an email what we were looking for and he helped me by calling and emailing me with all the information on the camper. So we had

Mr
great buying experience
I found my experience easy, friendly, great buying experience!

Michael

We are here to help, call us at
800-299-1199 or Contact Us

We are here to help!

800-299-1199
Contact Us
Contact Sales

Ancira RV of Boerne is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @800-299-1199 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2024 Tiffin Motorhomes Phaeton 40 IH

40 IH Floorplan

Specifications

Description

Features
